TEIN SUPER RACING Coilover Kit Honda Civic Type R Type R EK9 FF 1997.08-2000.08 JPN

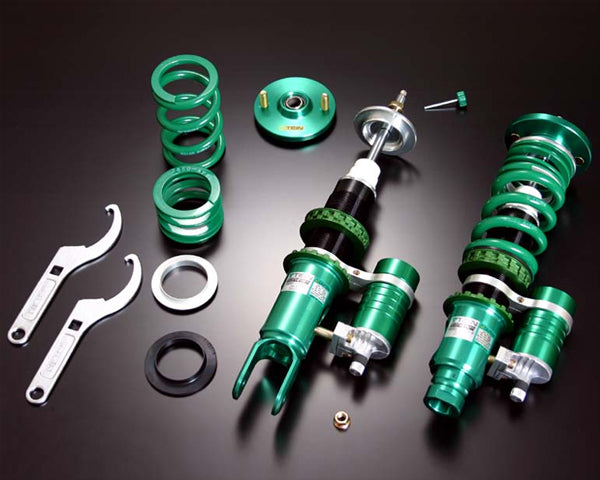

Developed from actual competition, TEIN was able to create a fully adjustable damper that can be easily tuned for any track and weather conditions. Super Racing Dampers utilize a full-length adjustment system to allow shock length and spring pre-load to be adjusted independently. Separate 16 - way adjustments for compression and rebound damping enable the user to fine tune for any situation. TEIN has incorporated both camber and caster adjustment into the front pillow ball upper mounts for strut type vehicles. External reservoirs on SA type dampers allow for added oil capacity. Spring rates and shock valving were derived from many years of motorsports support, to provide the ultimate damper for competition. Designed and tested for circuit use by advanced and professional drivers who are seeking complete damper tuning capability.

Front Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: YUpper Mount: P/URecommended Ride Height (mm): -40Recommended Ride Height (inch): -1.6Ride Height Adjustable Range: Max Low (mm): -72Max Low (inch): -2.8Max High (mm): -16Max High (inch): -0.6Recommended Low (mm): -50Recommended Low (inch): -2Recommended High (mm): -30Recommended High (inch): -1.2SpringRate (kgf/mm): 24Rate (lbs/in): 1344SP PART#RS240-A1125Free Length (mm): 125I.D. (mm): ID58Rear Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: YUpper Mount: P/URecommended Ride Height (mm): -45Recommended Ride Height (inch): -1.8Ride Height Adjustable Range: Max Low (mm): -71Max Low (inch): -2.8Max High (mm): -19Max High (inch): -0.7Recommended Low (mm): -55Recommended Low (inch): -2.2Recommended High (mm): -35Recommended High (inch): -1.4Spring: Rate (kgf/mm): 16Rate (lbs/in): 896SP PART#RS160-A1125Free Length (mm): 125I.D. (mm): ID58Fitment:Year: 1997.08-2000.08Make: HondaModel: Civic Type RTrim: Type RDrivetrain: FFChassis: EK9Motor Size: 1600Vehicle Region: JPNNotes:Ride Height Drop Shown Is Recommended Value For Circuit Use And Might Not Meet Vehicle Safety Regulations.Features:Steel ConstructionMono Tube internal constructionInverted design for strut type front and rearRide Height adjustable via threaded body and spring seats16 ? 16 way adjustable dampers, compression and rebound separately adjustablePillow ball upper mounts for increased steering feelUpper and lower camber adjustment on front for strut type vehiclesCaster adjustment on front for strut type vehiclesDual EDFC (Electronic Damping Force Controller) compatiblePowder coated brackets with Teflon coated shock body for heavy duty rust preventionKit Includes:Adjustable Shock Absorber ? 4 Bump Rubber ? 4Hook Spanner ? 2 Some applications include helper springsDust Cover ? 4 Pillow ball Upper Mount ? 4Instruction Manual ? 1 Lower Spring Seat ? 4Sticker Sheet ? 1 Seat Lock ? 12

Images are for marketing purposes only. Actual item may vary
