TEIN SUPER DRIFT Coilover Kit Nissan Silvia J'S, Q'S, K'S S14 FR 1993.10-1998.12 JPN

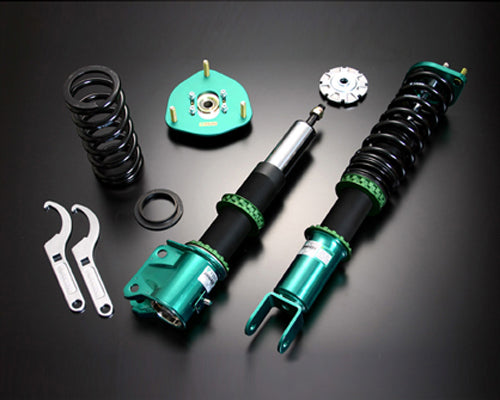

TEIN's support of competition D1 drivers and vehicles has led to the development of Super Drift dampers. Which were specifically developed for the avid drifter. Spring rates and damping force characteristics were chosen to increase car control in a drift, and to aid in initiating a slide. Full length and 16 level damping force adjustment allow suspension tuning for drivers at all skill levels. Pillowball upper mounts with front camber adjustment plates are included*. EDFC compatible for quick and hassle free dampening force changes. Super Drift is the suspension of choice for all levels of drifters.

Front Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: YUpper Mount: CAMBER ADJRecommended Ride Height (mm): -60Recommended Ride Height (inch): -2.4Ride Height Adjustable Range: Max Low (mm): -130Max Low (inch): -5.1Max High (mm): 34Max High (inch): 1.3Recommended Low (mm): -70Recommended Low (inch): -2.8Recommended High (mm): -50Recommended High (inch): -2SpringRate (kgf/mm): 10Rate (lbs/in): 560SP PART#SQ100-01175Free Length (mm): 175I.D. (mm): ID65Rear Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: YUpper Mount: P/URecommended Ride Height (mm): -25Recommended Ride Height (inch): -1Ride Height Adjustable Range: Max Low (mm): -162Max Low (inch): -6.4Max High (mm): -1Max High (inch): 0Recommended Low (mm): -35Recommended Low (inch): -1.4Recommended High (mm): -15Recommended High (inch): -0.6Spring: Rate (kgf/mm): 8Rate (lbs/in): 448SP PART#SL080-01200Free Length (mm): 200I.D. (mm): ID65Fitment:Year: 1993.10-1998.12Make: NissanModel: SilviaTrim: J'S, Q'S, K'SDrivetrain: FRChassis: S14Motor Size: 2000Vehicle Region: JPNFeatures:Steel ConstructionTwin Tube internal constructionRide Height adjustable via threaded body and spring seats16 way adjustable dampers, compression and rebound combinedSpecial damping force curves to improve drift controlPillow ball upper mounts for increased steering feelUpper camber adjustment on front for strut type vehiclesLarger piston diameter for strut type front and rear (22mm)EDFC (Electronic Damping Force Controller) compatibleAnodized brackets with Teflon coated shock body for heavy duty rust preventionKit Includes:Adjustable Shock Absorber ? 4Bump Rubber ? 4Main Spring ? 4Hook Spanner ? 2Some applications include helper springsDust Cover ? 4Pillow ball Upper Mount ? 4 Instruction Manual ? 1Lower Spring Seat ? 4Sticker Sheet ? 1Seat Lock ? 12

Images are for marketing purposes only. Actual item may vary
