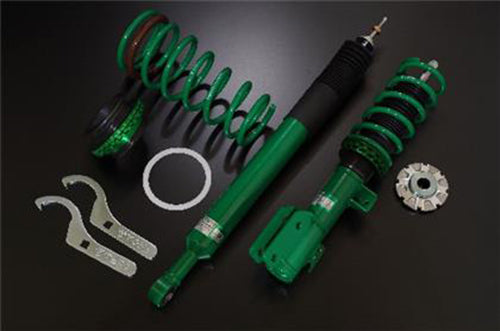

TEIN STREET BASIS Z Coilover Kit Honda Civic EH2 FF 1992-1995 USA

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:Damping Force Adjustment: NFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -75Recommended Ride Height (inch): -3Ride Height Adjustable Range: Max Low (mm): -129Max Low (inch): -5.1Max High (mm): -44Max High (inch): -1.7Recommended Low (mm): -85Recommended Low (inch): -3.3Recommended High (mm): -65Recommended High (inch): -2.6SpringRate (kgf/mm): 9Rate (lbs/in): 504SP PART#SB090-13200Free Length (mm): 200I.D. (mm): ID70Rear Specifications:Damping Force Adjustment: NFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -65Recommended Ride Height (inch): -2.6Ride Height Adjustable Range: Max Low (mm): -107Max Low (inch): -4.2Max High (mm): -41Max High (inch): -1.6Recommended Low (mm): -75Recommended Low (inch): -3Recommended High (mm): -55Recommended High (inch): -2.2Spring: Rate (kgf/mm): 3Rate (lbs/in): 168SP PART#SY030-13225Free Length (mm): 225I.D. (mm): ID70Fitment:Year: 1992-1995Make: HondaModel: CivicDrivetrain: FFChassis: EH2Motor Size: 1500Vehicle Region: USANotes:3Dr/4Cyl/Rr ForkFeatures:Steel ConstructionTwin Tube internal constructionThread Type Ride Height AdjustmentUtilizes OEM Mounts16 way adjustable dampers, compression and rebound combinedHigh Durability and ReliabilityAnodized brackets with Teflon coated shock body for heavy duty rust prevention

Images are for marketing purposes only. Actual item may vary
