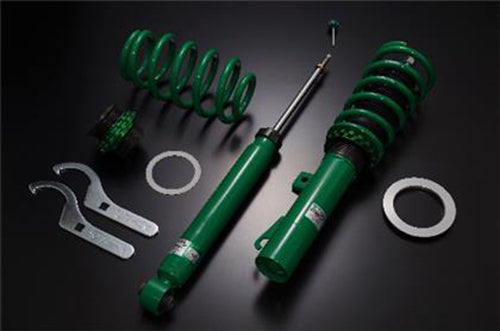

TEIN STREET ADVANCE Z Coilover Kit Honda Civic Si EH3 FF 1992-1995 USA

The TEIN STREET ADVANCE Z damper is the evolution of the popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using our new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. The unique ZT Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance. Each STREET ADVANCE Z has updated internal components and external coatings increase durability and product life. STREET ADVANCE Z dampers are great for daily driving and spirited driving for all types of drivers.

Front Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -75Recommended Ride Height (inch): -3Ride Height Adjustable Range: Max Low (mm): -129Max Low (inch): -5.1Max High (mm): -44Max High (inch): -1.7Recommended Low (mm): -85Recommended Low (inch): -3.3Recommended High (mm): -65Recommended High (inch): -2.6SpringRate (kgf/mm): 9Rate (lbs/in): 504SP PART#SB090-13200Free Length (mm): 200I.D. (mm): ID70Rear Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -65Recommended Ride Height (inch): -2.6Ride Height Adjustable Range: Max Low (mm): -107Max Low (inch): -4.2Max High (mm): -41Max High (inch): -1.6Recommended Low (mm): -75Recommended Low (inch): -3Recommended High (mm): -55Recommended High (inch): -2.2Spring: Rate (kgf/mm): 3Rate (lbs/in): 168SP PART#SY030-13225Free Length (mm): 225I.D. (mm): ID70Fitment:Year: 1992-1995Make: HondaModel: CivicTrim: SiDrivetrain: FFChassis: EH3Motor Size: 1600Vehicle Region: USANotes:Rr: Interior Needs To Be Removed, Modified And/Or Relocated To Avoid Interference With The Motor. 3Dr/4Cyl/Rr ForkFeatures:Steel ConstructionTwin Tube internal constructionLarger piston diameter for strut type front and rear (22mm)16-Way Damping Adjustable with over 200% increase in damping force change.Ride Height adjustable via spring seatPowder coated damper bodyNon-welded ZT coated Adjustment TubeFull-Length Dust Boots1-piece Aluminum Spring Seat with Delrin Thrust WasherOne Year Warranty Against Manufacturer s DefectsEDFC Compatible

Images are for marketing purposes only. Actual item may vary
