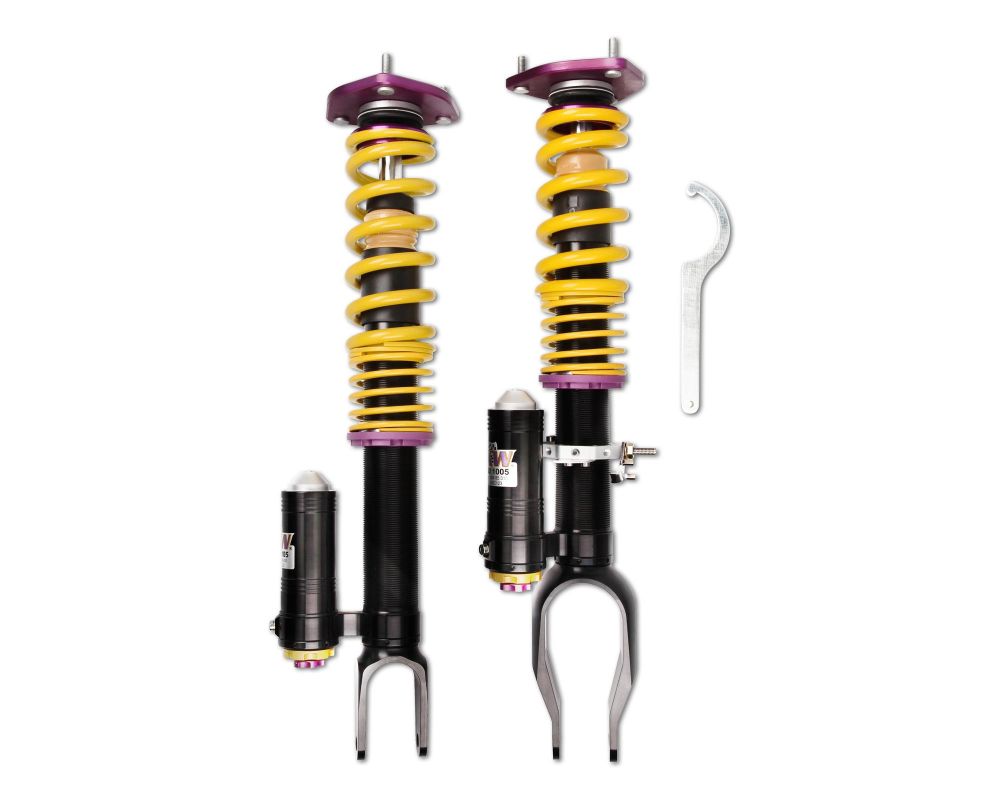

KW Clubsport Kit 3 Way with Top Mounts Nissan GT-R Skyline R35 2009+

KW Clubsport coilovers were developed for customers who demand a better handling car when participating in track day events, but also require a setup that could be used every day. The Clubsport was specifically designed for the Nordschleife using track day tires. By using the optional adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use. The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow a suspension setup according to the vehicle load, tire characteristics and different track conditions. KW Clubsport meets every demand regarding a coilover for the usage on the road and the race track.Height adjustable coiloversPerformance setup for the racetrackDampers in compression & rebound forces independently adjustableUse of high performance linear race springsIn stainless steel technology inox-lineAdditional available with racing top mountsTÜV approval possible depending on the specificationCompression and Rebound Adjustment

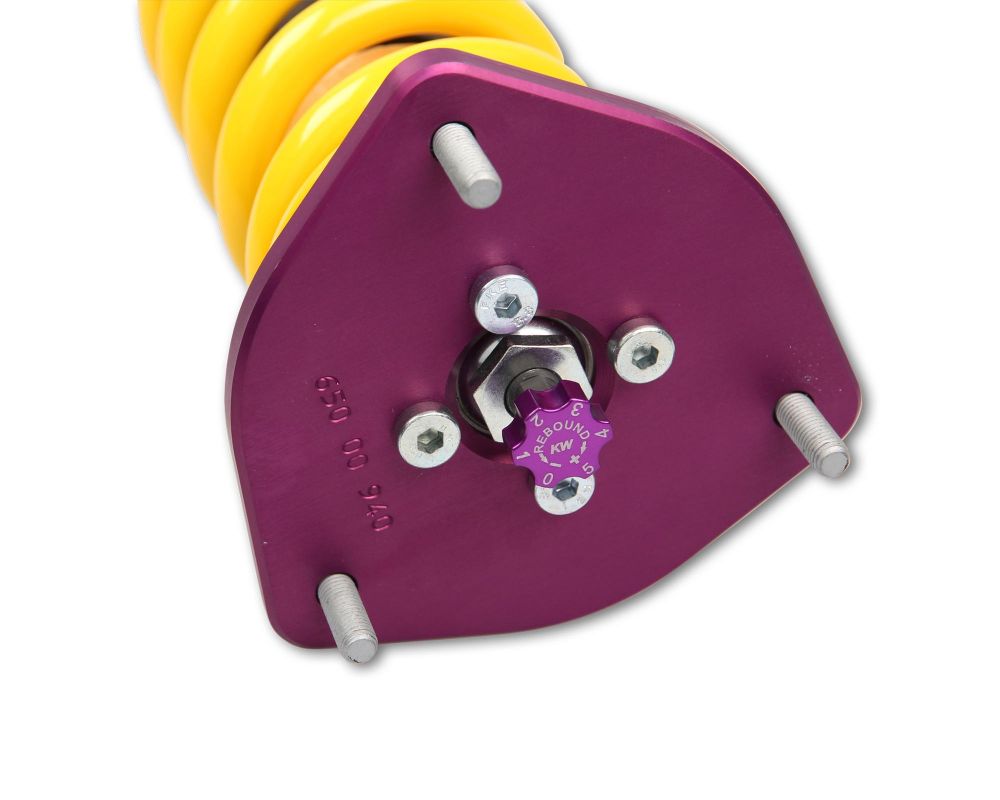

The rebound adjustment, produced with the widest range of adjustment for that specific vehicle, is carried out by an adjustment spindle at the end of the piston rod. Most of all, the rebound controls the car body vibration, but at the same time the Dampening range also affects the handling and comfort at low speeds. With the rebound adjustment, the car can be adjusted to the demands of the driver; the driving impression can range from comfortable ride quality to a tighter and tense ride with improved road-holding characteristics.

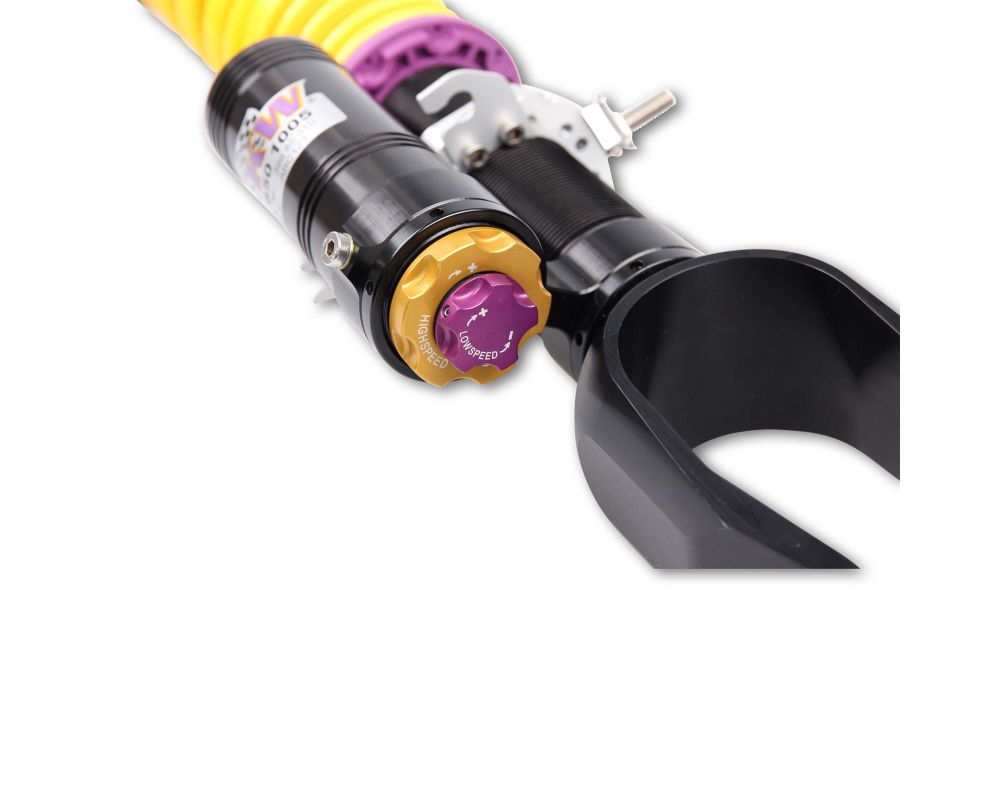

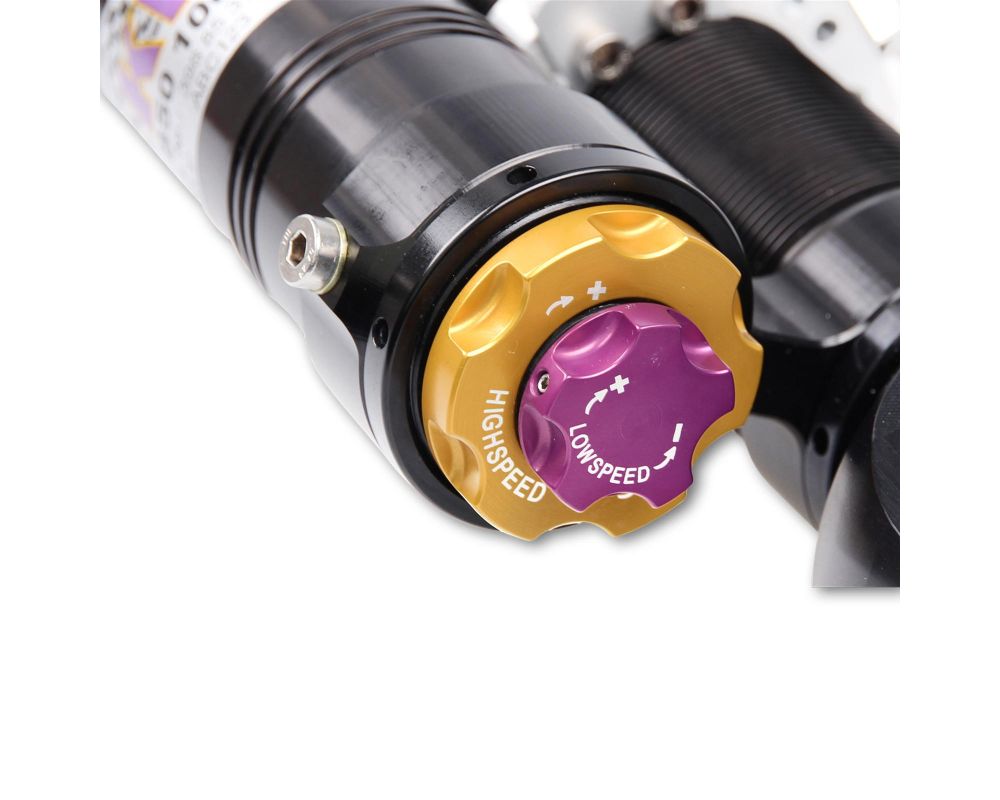

The compression adjustment takes place at the lower end of the shock absorber by our patented multi-purpose valve. The number of pre-adjustable parameters of this valve allows a wide range of adjustments. The unique low-speed compression adjustment makes this technology unique. Within this Dampening range, the driving behavior of the car is strongly influenced. An increasing Dampening force already supports the car at the compression and therefore avoids rolling motions. The steering behaviour significantly improves.

Aluminum Unibal Top Mounts

Adjustable top mounts are made from high grade aluminum and are included in the application when a technical advantage can be achieved. A special gasket system prevents the intrusion of dirt and moisture into the free-from-play pre-stressed uniball-bearings and therefore prevents corrosion and wear.Scaled camber adjustment (optionally also caster)Sealed, pre-stressed uniball-bearing in stress directionMade of tool steel (100Cr6); 58 to 64 HRC - hard chrome platedPTFE lubricant, stainless steel outer ring (X200Cr13)Axial bearing as balance on McPherson struts

KW Clubsport suspension kits are independently adjustable in compression and rebound forces and include high performance racing springs. Racing top mounts are optionally available for further performance. KW Clubsport guarantees excellent handling, best performance, highest agility and fantastic lap times.

High-Performance Race Springs

The new KW high-performance springs are produced from specially alloyed and tempered spring steel, and the increased resilience of the material enables new spring designs with reduced spring thickness. This makes the springs up to 30% more efficient than conventional racing springs. With the same overall length this means:more suspension travelhigher block loadinglower weightFurther weight reduction can be achieved by shortening the overall length of the springs and adjusting the necessary block loading.shorter overall spring lengthimproved freedom of wheel movementfurther weight reduction

Features:Shock Technology: 3-wayTÜV approved Front lowering adjustment ranges: 10-30 mm (0.4-1.2 inches)Rear lowering adjustment ranges: 15-35 mm (0.8-1.5 inches)Front spring rates 970 lbs/inchRear spring rates: 515 lbs/inchFitment:Nissan GT-R Skyline (R35) 2009+Notes:Height adjustable on the front and rear axles (threaded strut housings)For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories listClubsport coilover with top mount: with front- and rear axle top mount available
