Eventuri Black Carbon Intake System Honda Civic Type R FL5

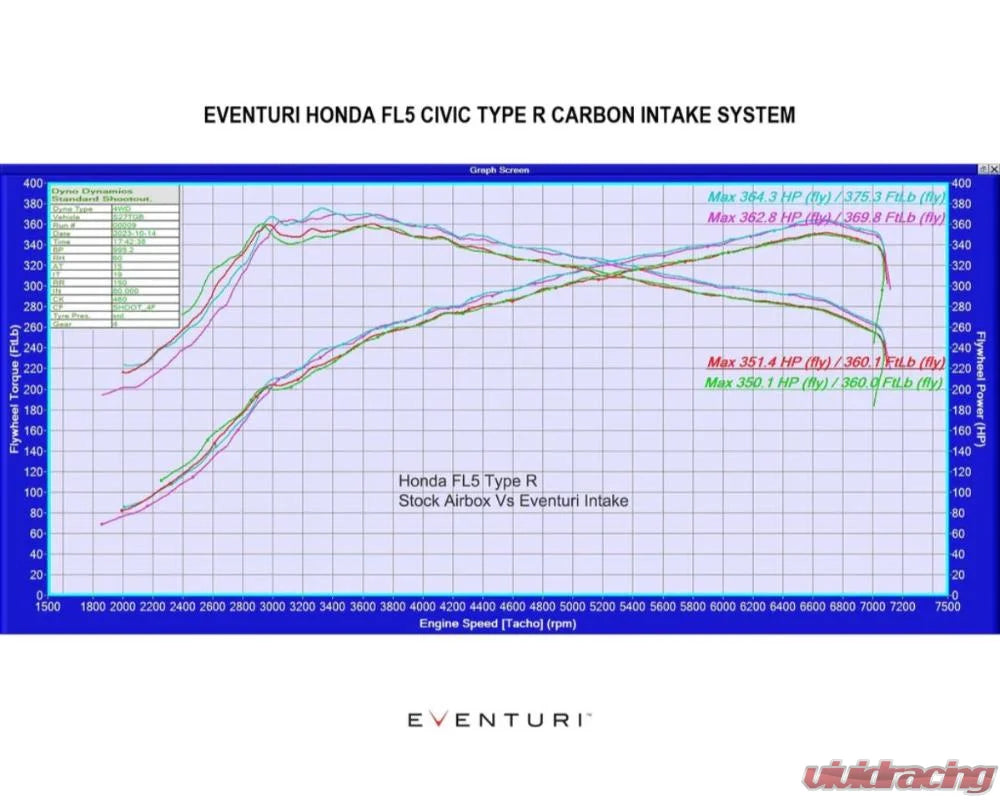

Performance Increase: 14hp, 15ft-lb

The Honda FL5 intake is the culmination of iterating our FK8 system to provide an optimised solution, taking advantage of the increased space in the FL5 engine bay. By maintaining a sealed airbox we have minimised heat soak to ensure a constant supply of cold air to the turbo. Since the intake sits directly behind the radiator it is crucial that the filter is not exposed which would result in heated air being drawn into the turbo.

We have also replaced the OEM flexible intake hose, which creates turbulence and therefore increases drag. With the FL5 Intake, we've engineered a seamless path from the filter to the inlet tube, eliminating drag and smoothing the airflow. Engine movement is now catered for by the inlet tube itself, which can move within the airbox whilst maintaining a seal against heat.

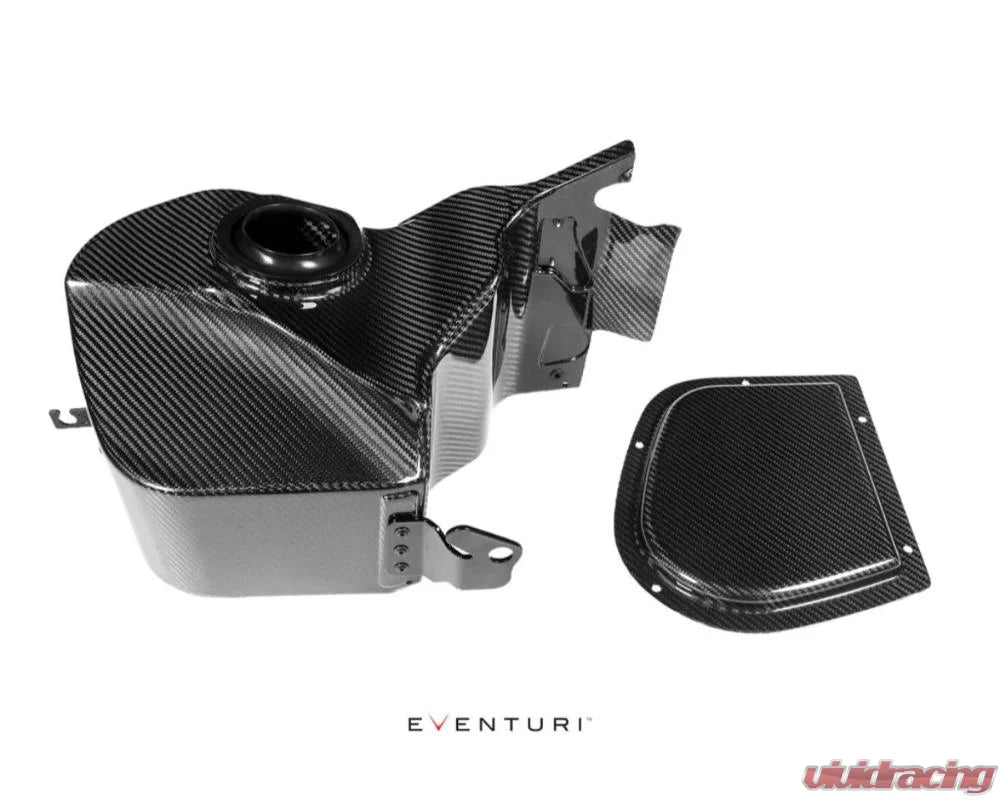

Our carbon airbox has been designed to maximise the use of the available volume and minimised heat ingress. The resulting performance gains and aesthetics are industry leading for the FL5 Type R.

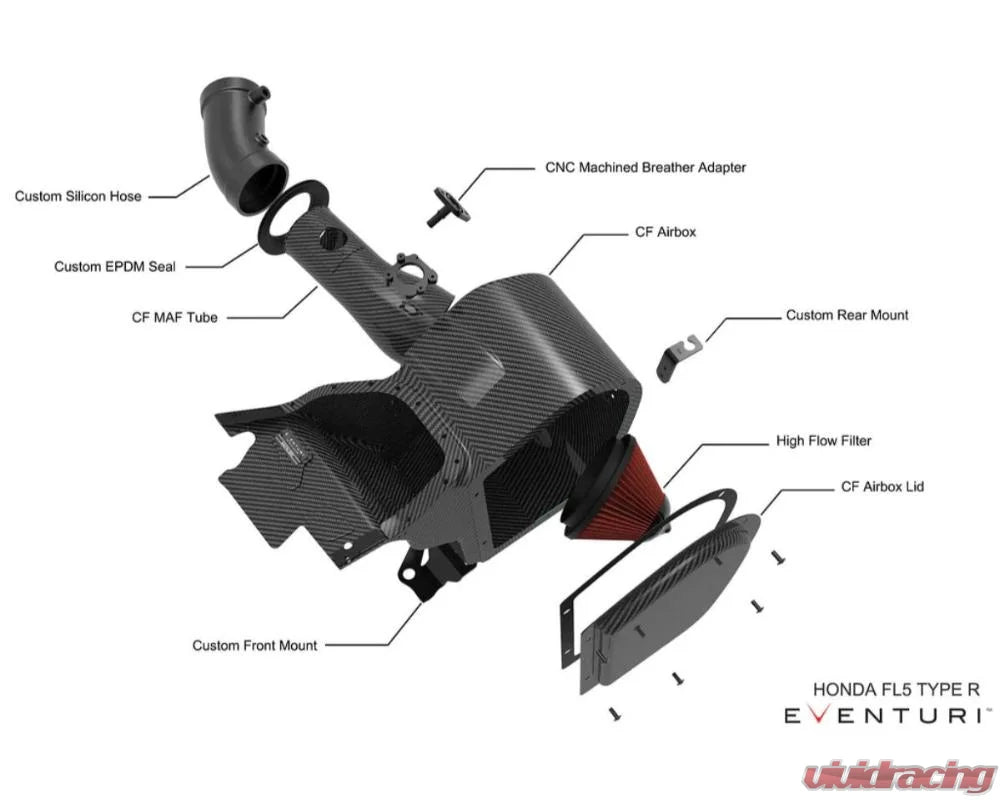

The Eventuri FL5 Type R intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards.

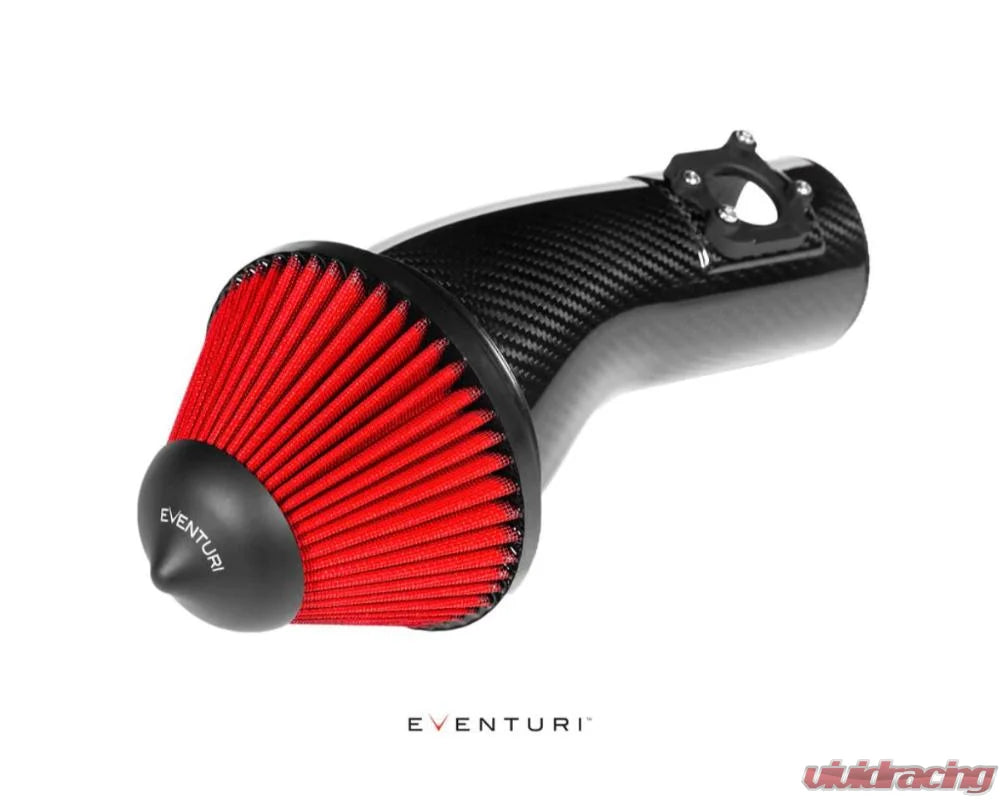

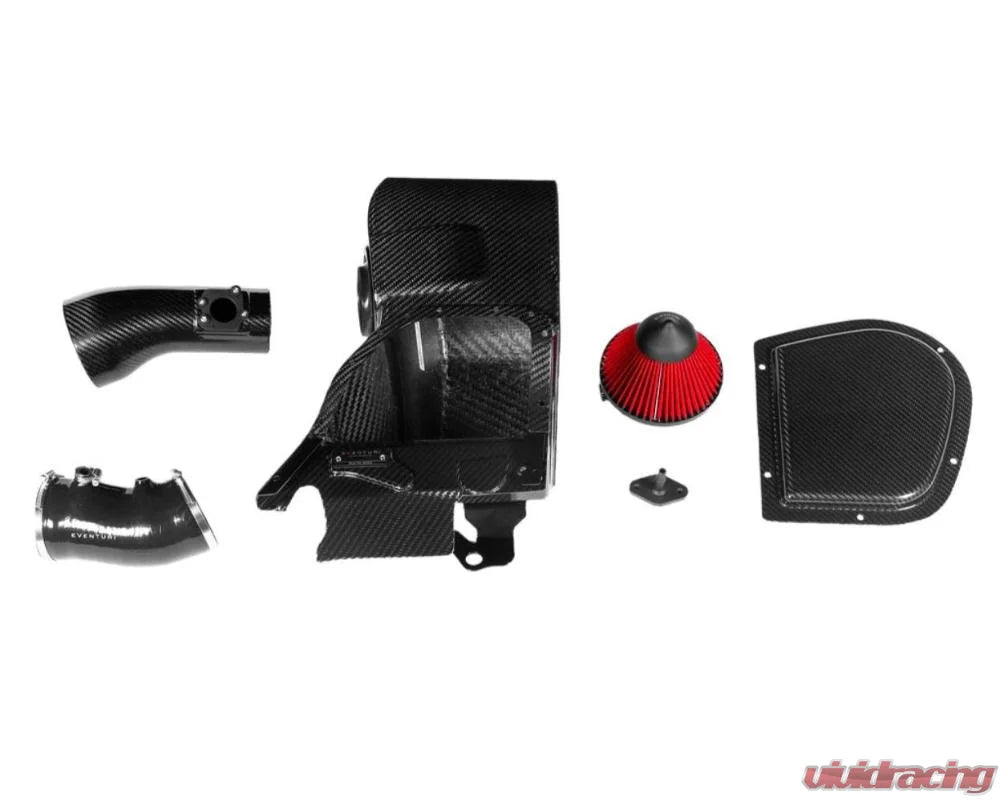

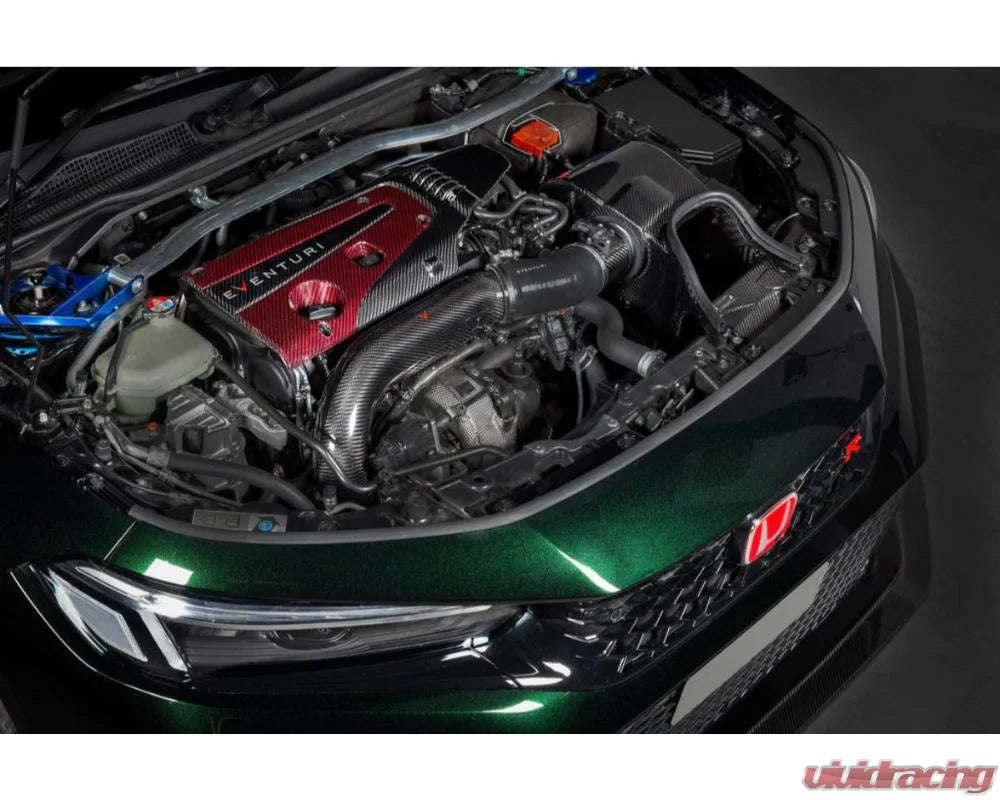

Each intake system consists of:Prepreg Carbon Fibre Airbox EnclosureCustom High Flow Air Filter ISO TestedCarbon Venturi stack with integrated MAF tubeFull Silicon Joiner with Breather InletsLaser Cut Bracket WorkFitment:Honda Civic Type R FL5Note:Some photos show optional engine cover and turbo inlet tubeThis item is not eligible for return
