BC Racing ZR Type Coilovers Honda Civic Rear Fork 92-95

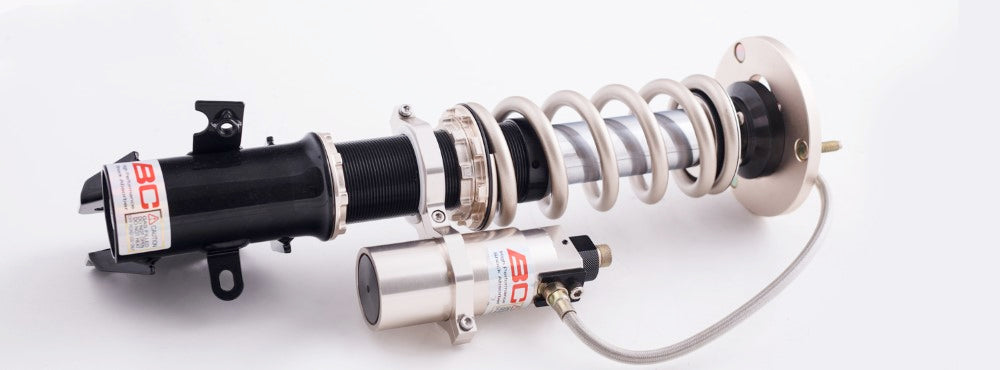

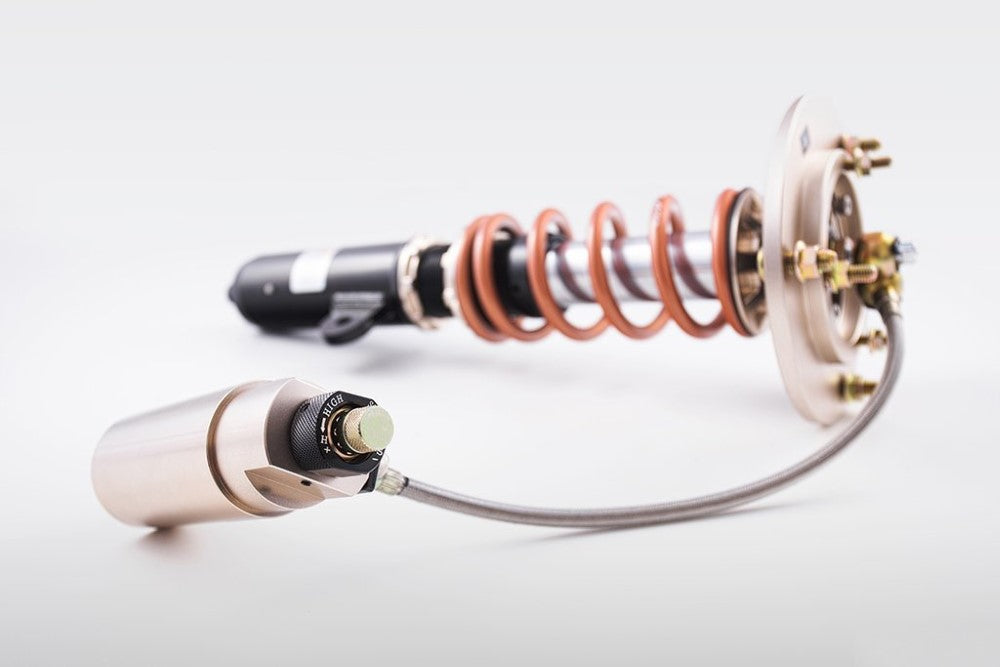

The BC Racing ZR Series Coilovers offer the most adjustability of any BC Racing Coilover System to date. Each ZR Series Coilover System is track tested and developed specifically for racers looking for more damping adjustability than the ER or HR Series can provide. The ZR Series offers 15-clicks of low-speed compression adjustment, 12-clicks of high-speed compression adjustment, and 30-clicks of rebound adjustment. They also offer full height adjustability independent of piston shaft travel and spring compression. On cars with McPherson struts, the ZR Series comes standard with an inverted mono-tube damper. The damper has a steel braided line exiting the top of the damper leading to the external reservoirs that can be remotely mounted on the chassis for easy adjustment. Cars with Double A-Arm suspension come with upright dampers. These dampers have steel braided lines or solid stems that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself.

Not all vehicles allow for inverted front and rear dampers. In such cases an upright mono-tube damper will be supplied. The braided line/hard stem for the external reservoir exits the base of the damper when not inverted. Please note that not all vehicles use camber plates in the front and/or rear. In such cases pillowball top mounts are supplied in place of camber plates on HR & ZR Series Coilover Systems.

Features:Inverted mono-tube damperLinear twin-piston designSwift springs come standardHeight adjustment independent of spring compression30 levels of rebound adjustment15 levels of low speed compression adjustment12 levels of high speed compression adjustmentFront and rear camber plates are standard on all applicable kitsFront and rear pillowball mounts are standard when camber plates do not applyCustom spring rates availableOne year warrantyRebuildableFitment:Honda Civic 92-95Note:Due to ride height adjustment ranges and spring rate vary so much from car to car and from model to model for most up to date information for your car please contact one of our friendly and knowledgeable sales staff. Default Spring Rates:Front Default Spring Rate: 10KG, ZR - 12KGRear Default Spring Rate: 6KG
